our products

Due to the ever-demanding needs of the energy industry, we provide high quality products per our customer’s specification requirements.

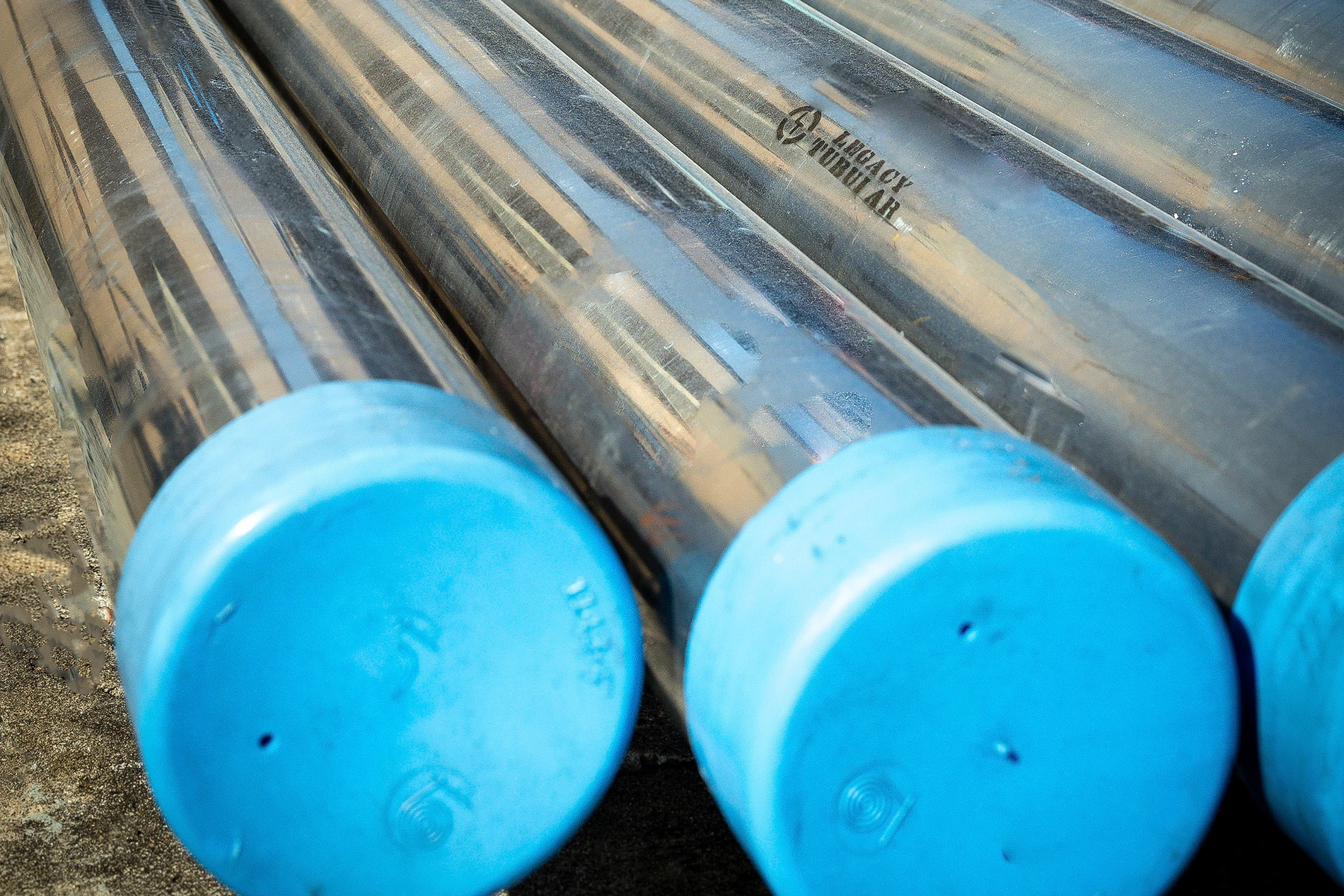

API Tubing/Casing/Pup Joints

Legacy Tubular (LT) stocks all grades of OCTG Tubing and Casing, including coupling stocks and mechanical tubes meeting API 5CT and API 5CRA requirements. Tubing is critical for well completion, carrying oil or gas from the reservoir to the surface. LT maintains strong inventory and relationships with tier-I mills globally, ensuring the ability to support projects of varying scopes. Threading options are supported by partnerships with thread license holders.

product details

GRADES

Low Alloys:
J55, K55, N80, L80 Type 1, L80, 13CR-80, 13Cr-85, T95, P110, C110, C125, Q125
Special Sour Service High Strength Low Alloys as per customer needs.
Martensitic Grades:
13Cr-80/85, Super 13Cr-95, Super 13Cr-110, 15Cr, 17Cr
Duplex Grades:
22Cr, 25Cr, 2507, 25CrW
Nickel Alloys:
Alloy 28, Inconel 825, 2550, G3, C276, 2535

SIZES

OCTG Size Ranges: 1.315” to 20″ OD, including standard API sizes and schedule sizes.

CHEMICAL AND MECHANICAL COMPOSITION

Chemical Composition

	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al
Min	–	–	–	–	–	–	–	–	–	–	–	–
Max	–	–	–	–	–	–	–	0.030	0.030	–	–	–

Mechanical Properties

Tensile Strength	517 MPa min	75,000 psi min
Yield Strength	379 MPa min	552 MPa max
	55,000 psi min	80,000 psi max
Total Elongation Under Load	0.200 %	–
Hardness	–	–

Chemical Composition

	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al
Min	–	–	–	–	–	–	–	–	–	–	–	–
Max	–	–	–	–	–	–	–	0.030	0.030	–	–	–

Mechanical Properties

Tensile Strength	655 MPa min	95,000 psi min
Yield Strength	379 MPa min	552 MPa max
	55,000 psi min	80,000 psi max
Total Elongation Under Load	0.500 %	–
Hardness	–	–

Chemical Composition

	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al
Min	–	–	–	–	–	–	–	–	–	–	–	–
Max	–	–	–	–	–	–	–	0.030	0.030	–	–	–

Mechanical Properties

Tensile Strength	689 MPa min	100,000 psi min
Yield Strength	552 MPa min	758 MPa max
	80,000 psi min	110,000 psi max
Total Elongation Under Load	0.500 %	–
Hardness	–	–

Chemical Composition

	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al
Min	0.150	0.250	–	12.000	–	–	–	–	–	–	–	–
Max	0.220	1.000	–	14.000	0.500	0.250	–	0.020	0.010	1.000	–	–

Mechanical Properties

Tensile Strength	655 MPa min	95,000 psi min
Yield Strength	552 MPa min	655 MPa max
	80,000 psi min	95,000 psi max
Total Elongation Under Load	0.500 %	–
Hardness	23 Max HRC	241 Max HBW

Chemical Composition

	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al
Min	0.150	0.250	–	12.000	–	–	–	–	–	–	–	–
Max	0.220	1.000	–	14.000	0.500	0.250	–	0.020	0.010	1.000	–	–

Mechanical Properties

	Min Yield	Max Yield	Min Tensile	Max Hardness (HRC)
	85	100	100	24

Chemical Composition

	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al
Min	–	–	1.500	11.500	–	–	–	–	–	–	–	–
Max	0.030	1.000	2.000	2.5000	13.500	6.000	–	0.500	0.020	0.005	0.500	–

Mechanical Properties

Tensile Strength	724 MPa min	105,000 psi min
Yield Strength	655 MPa min	827 MPa max
	95,000 psi min	120,000 psi max
Total Elongation Under Load	20.000 %	–
Hardness	28 Max HRC	–

Chemical Composition

	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al
Min	–	0.250	–	1.5000	11.500	–	–	–	–	–	–	–
Max	0.030	1.000	1.000	2.5000	13.500	6.000	–	0.500	0.020	0.005	0.500	–

Chemical Composition

	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al
Min	–	–	0.250	0.400	–	–	–	–	–	–	–	–
Max	0.350	1.200	0.850	1.500	0.990	–	–	0.020	0.010	–	–	–

Mechanical Properties

Tensile Strength	724 MPa min	105,000 psi min
Yield Strength	655 MPa min	758 MPa max
	95,000 psi min	110,000 psi max
Total Elongation Under Load	0.500 %	–
Hardness	25 Max HRC	255 Max HBW

Chemical Composition

	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al
Min	–	–	–	–	–	–	–	–	–	–	–	–
Max	–	–	–	–	–	–	–	0.030	0.030	–	–	–

Mechanical Properties

Tensile Strength	862 MPa min	125,000 psi min
Yield Strength	758 MPa min	965 MPa max
	110,000 psi min	140,000 psi max
Total Elongation Under Load	0.600 %	–
Hardness	–	–

Chemical Composition

	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al
Min	–	–	0.250	0.400	–	–	–	–	–	–	–	–
Max	0.350	1.200	1.000	1.500	0.990	–	–	0.020	0.005	–	–	–

Mechanical Properties

Tensile Strength	793 MPa min	115,000 psi min
Yield Strength	758 MPa min	828 MPa max
	110,000 psi min	120,000 psi max
Total Elongation Under Load	0.700 %	–
Hardness	30 Max HRC	286 Max HBW

Chemical Composition

	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al	Nb	B
Min	–	–	0.800	0.800	–	–	–	–	–	–	–	–	–	–
Max	0.450	1.000	1.500	1.500	0.150	0.150	–	0.020	0.005	0.400	–	–	–	–

Mechanical Properties

VM	Min Yield	Max Yield	Min Tensile	Max Hardness (HRC)
125 SS	125	135	130	34

Chemical Composition

	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al
Min	–	–	–	–	–	–	–	–	–	–	–	–
Max	0.350	1.350	0.850	1.500	0.990	–	–	0.020	0.010	–	–	–

Mechanical Properties

Tensile Strength	931 MPa min	135,000 psi min
Yield Strength	862 MPa min	1,034 MPa max
	125,000 psi min	150,000 psi max
Total Elongation Under Load	0.650 %	–
Hardness	–	–
