Due to the ever-demanding needs of the energy industry, we provide high quality products per our customer’s specification requirements.

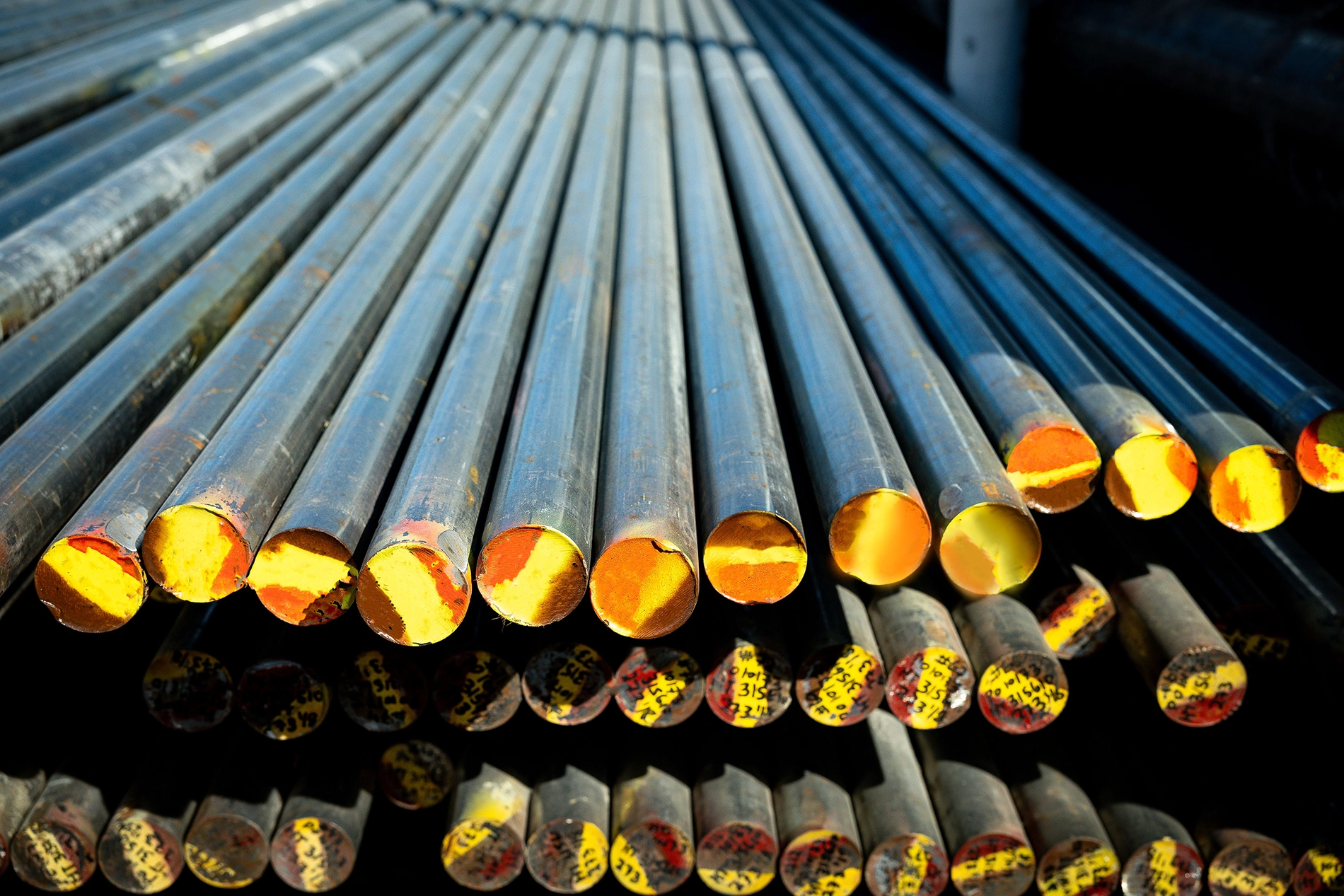

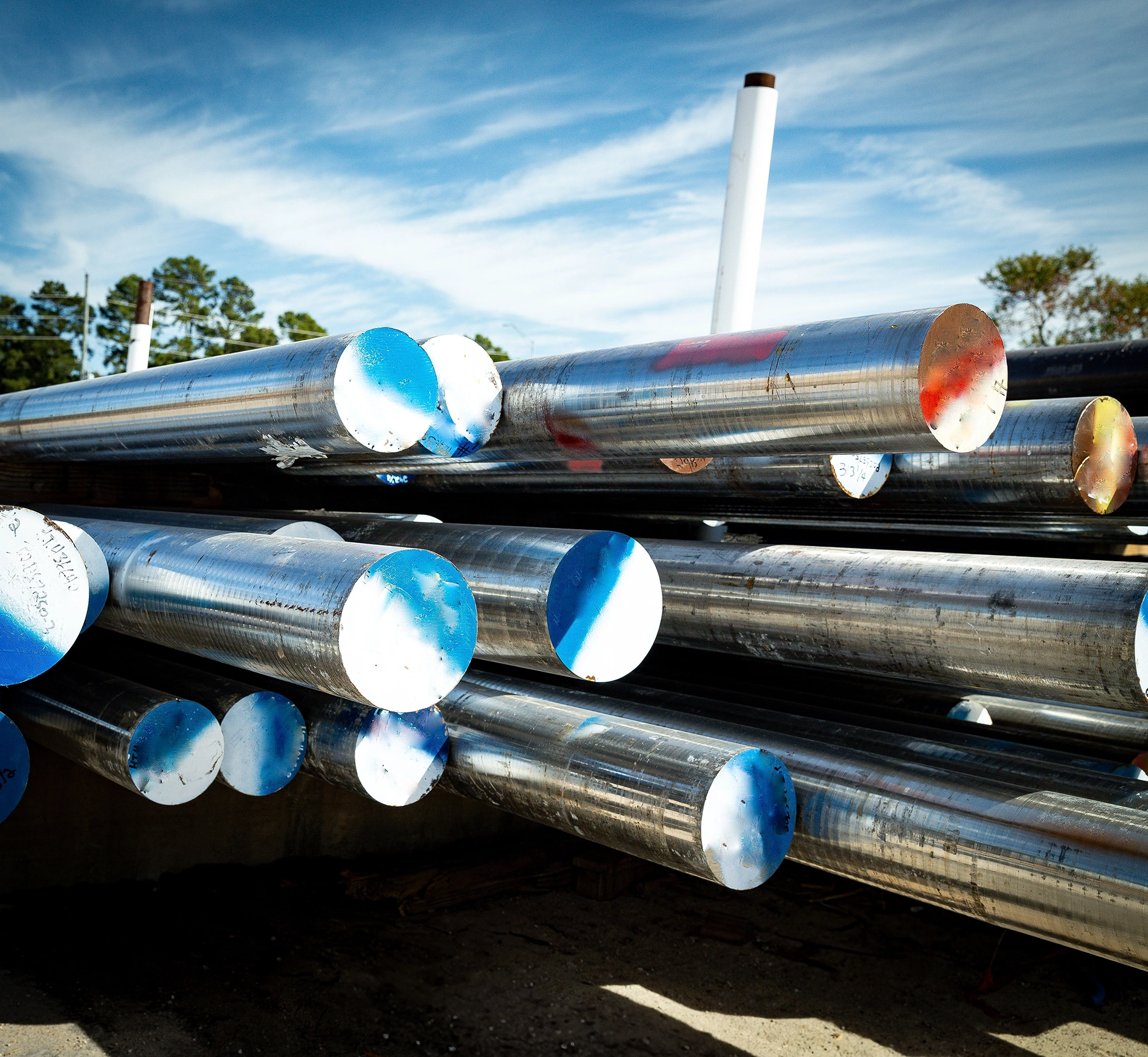

Bar
Legacy Tubular inventories various bar stock materials meeting customer-specific needs for oil and gas applications. Custom sizes are available upon request.
product details
GRADES
GRADES
- Low Alloys:
API 5CT and ASTM standards (4130, 4140, 4145, 4330, 8620, 1018) Martensitic Grades:
410 13Cr, 420 Mod 13Cr, 9CR, S13CR95, S13CR110- Nickel Alloys:
Inconel (718, 825, 925) - Duplex/Super Duplex Grades:
25CR80
SIZES
SIZES
- Bar Size Ranges: 3” to 20”
CHEMICAL AND MECHANICAL COMPOSITION
Chemical Composition
| C | Mn | Mo | Cr | Ni | Cu | Ti | P | S | Si | V | Al | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 0.280 | 0.400 | 0.150 | 0.800 | – | – | – | – | – | – | – | – |
| Max | 0.330 | 0.600 | 0.250 | 1.100 | – | – | – | 0.040 | 0.040 | 0.350 | – | – |
Chemical Composition
| C | Mn | Mo | Cr | Ni | Cu | Ti | P | S | Si | V | Al | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 0.380 | 0.750 | 0.150 | 0.800 | – | – | – | – | – | – | – | – |
| Max | 0.430 | 1.000 | 0.250 | 1.100 | – | – | – | 0.040 | 0.040 | 0.350 | – | – |
Chemical Composition
| C | Mn | Mo | Cr | Ni | Cu | Ti | P | S | Si | V | Al | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 0.430 | 0.750 | 0.150 | 0.800 | – | – | – | – | – | – | – | – |
| Max | 0.480 | 1.000 | 0.250 | 1.100 | – | – | – | 0.040 | 0.040 | 0.350 | – | – |
Chemical Composition
| C | Mn | Mo | Cr | Ni | Cu | Ti | P | S | Si | V | Al | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 0.280 | 0.750 | 0.350 | 0.800 | – | – | – | – | – | – | – | – |
| Max | 0.330 | 1.000 | 0.600 | 1.100 | 0.300 | 0.350 | – | 0.015 | 0.005 | 0.300 | 0.120 | – |
Mechanical Properties
| Tensile Strength | 1103 MPa min | 160,000 psi min |
| Yield Strength | 1034 MPa min | – |
| 150,000 psi min | – | |
| Total Elongation Under Load | 14.000 % | – |
| Hardness | 40 Max HRC | – |
Chemical Composition
| C | Mn | Mo | Cr | Ni | Cu | Ti | P | S | Si | V | Al | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 0.180 | 0.700 | 0.150 | 0.400 | – | – | – | – | – | – | – | – |
| Max | 0.230 | 0.900 | 0.250 | 0.600 | 0.700 | – | – | 0.025 | 0.025 | 0.350 | – | – |
Chemical Composition
| C | Mn | Mo | Cr | Ni | Cu | Ti | P | S | Si | V | Al | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 0.150 | 0.600 | – | – | – | – | – | – | – | – | – | – |
| Max | 0.200 | 0.900 | – | – | – | – | – | 0.040 | 0.050 | – | – | – |
Chemical Composition
| C | Mn | Mo | Cr | Ni | Cu | Ti | P | S | Si | V | Al | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 0.150 | 0.250 | – | 12.000 | – | – | – | – | – | – | – | – |
| Max | 0.220 | 1.000 | – | 14.000 | 0.500 | 0.250 | – | 0.020 | 0.010 | 1.000 | – | – |
Mechanical Properties
| Tensile Strength | 655 MPa min | 95,000 psi min |
| Yield Strength | 552 MPa min | 655 MPa max |
| 80,000 psi min | 95,000 psi max | |
| Total Elongation Under Load | 0.500 % | – |
| Hardness | 23 Max HRC | 241 Max HBW |
Chemical Composition
| C | Mn | Mo | Cr | Ni | Cu | Ti | P | S | Si | V | Al | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 0.280 | 0.400 | 0.150 | 0.800 | – | – | – | – | – | – | – | – |
| Max | 0.330 | 0.600 | 0.250 | 1.100 | – | – | – | 0.040 | 0.040 | 0.350 | – | – |
Chemical Composition
| C | Mn | Mo | Cr | Ni | Cu | Ti | P | S | Si | V | N | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNS S41425 | Min Max | – 0.050 | 0.5 1.5 | 1.5 2 | 12.00 15.00 | 4.00 7.00 | – 0.30 | – – | – 0.02 | – 0.005 | – 0.50 | – – | 0.06 0.12 |
| UNS S41426 | Min Max | – 0.03 | – 0.05 | 1.5 3 | 11.5 13.5 | 4.5 6.5 | – – | 0.01 0.5 | – 0.02 | – 0.005 | – 0.5 | – 0.5 | – – |
| UNS S41427 | Min Max | – 0.03 | – 1 | 1.5 2.5 | 11.5 13.5 | 4.5 6 | – – | – 0.01 | – 0.02 | – 0.005 | – 0.5 | 0.1 0.5 | – – |
Mechanical Properties
| min | Max | MPA min |
Max | ||
|---|---|---|---|---|---|
| 95ksi UNS S41425 |
Tensile Yield Hardness |
105,000 95,000 – |
– 112,000 28 |
724 655 – |
– 772 – |
| UNS S41426 | Tensile Yield Hardness |
105,000 95,000 – |
– 105,000 27 |
724 655 – |
– 724 – |
| UNS S41427 | Tensile Yield Hardness |
105,000 95,000 – |
– 112,000 29 |
724 655 – |
– 772 – |
| 110ksi UNS S41425 |
Tensile Yield Hardness |
125,000 110,000 – |
– 130,000 32 |
862 758 – |
– 896 – |
| UNS S41426 | Tensile Yield Hardness |
115,000 110,000 – |
– 130,000 32 |
793 758 – |
– 896 – |
| UNS S41427 | Tensile Yield Hardness |
125,000 110,000 – |
– 130,000 32 |
862 758 – |
– 896 – |
Chemical Composition
| C | Mn | Mo | Cr | Ni | Cu | Ti | P | S | Si | V | N | W | PREN | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNS S32750 | Min Max |
– 0.030 |
– 1.2 |
3 5 |
24.00 26.00 |
6.00 8.00 |
– 0.50 |
– – |
– 0.04 |
– 0.020 |
– 0.80 |
– – |
0.24 0.32 |
– – |
40 45 |
| UNS S32760 | Min Max | – 0.05 |
– 1 |
3 4 |
24 26 |
6 8 |
.05 1 |
– – |
– 0.03 |
– 0.010 |
– 1 |
– – |
0.2 0.3 |
0.5 1 |
40 45 |
| UNS S32550 | Min Max | – 0.04 |
– 1.5 |
2.9 3.9 |
24 27 |
4.5 6.5 |
1.5 2.5 |
– – |
– 0.04 |
– 0.030 |
– 1 |
– – |
0.1 0.25 |
– – |
40 45 |
Mechanical Composition
| PSI min |
Max | MPA | Max | |||
|---|---|---|---|---|---|---|
| Tensile Yield Hardness |
109,000 80,000 – |
– 105,000 28 |
752 552 – |
– 724 – |
